• 4-Wheel Antilock Brake Sys
• 5G Modem
• Ford App
• Hill Start Assist
• Manual Locking Hubs
• Mono Beam Coil Spring Frt Suspension W/Stab Bar
• Rear View Camera
• Remote Keyless Entry

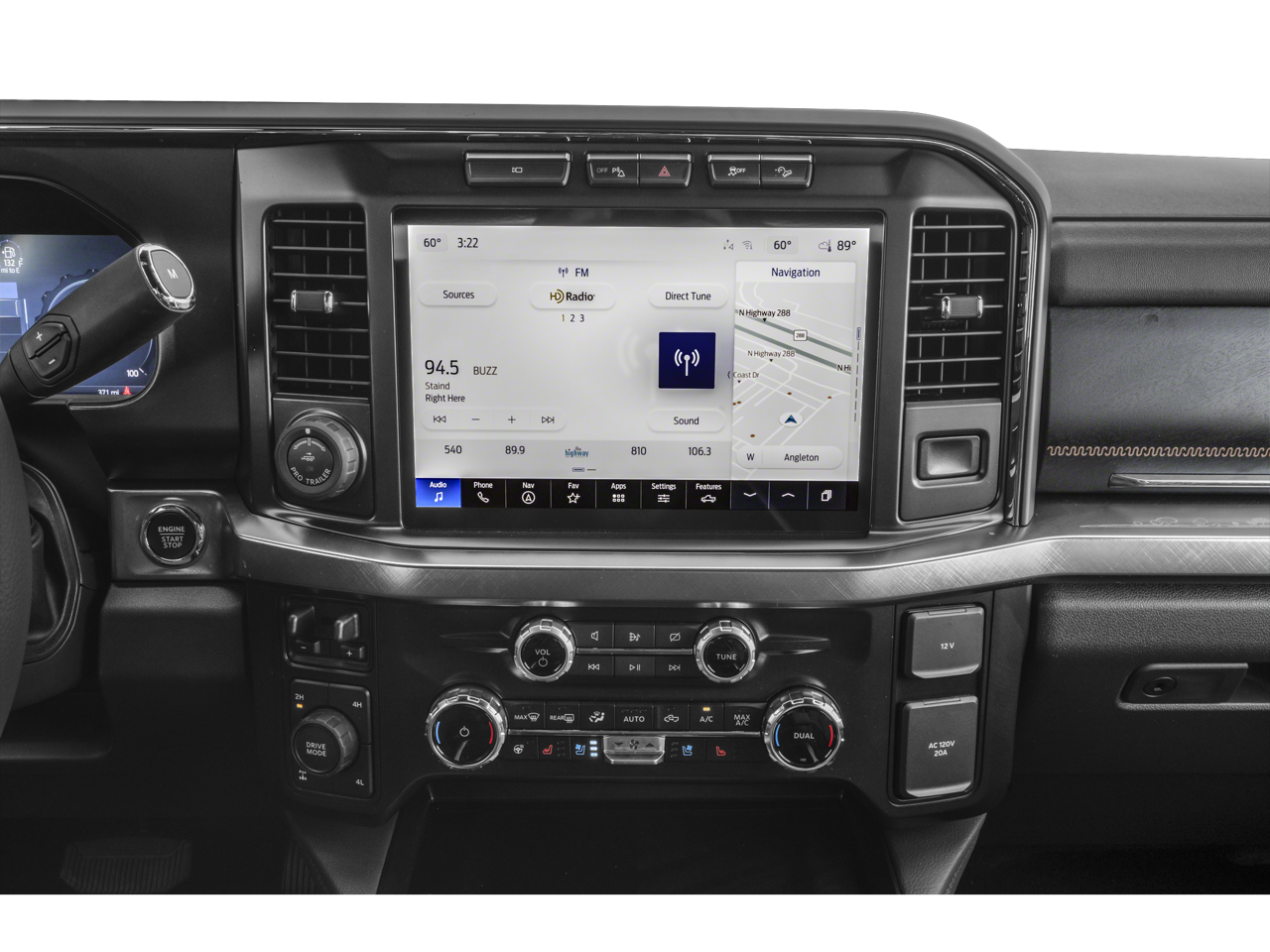

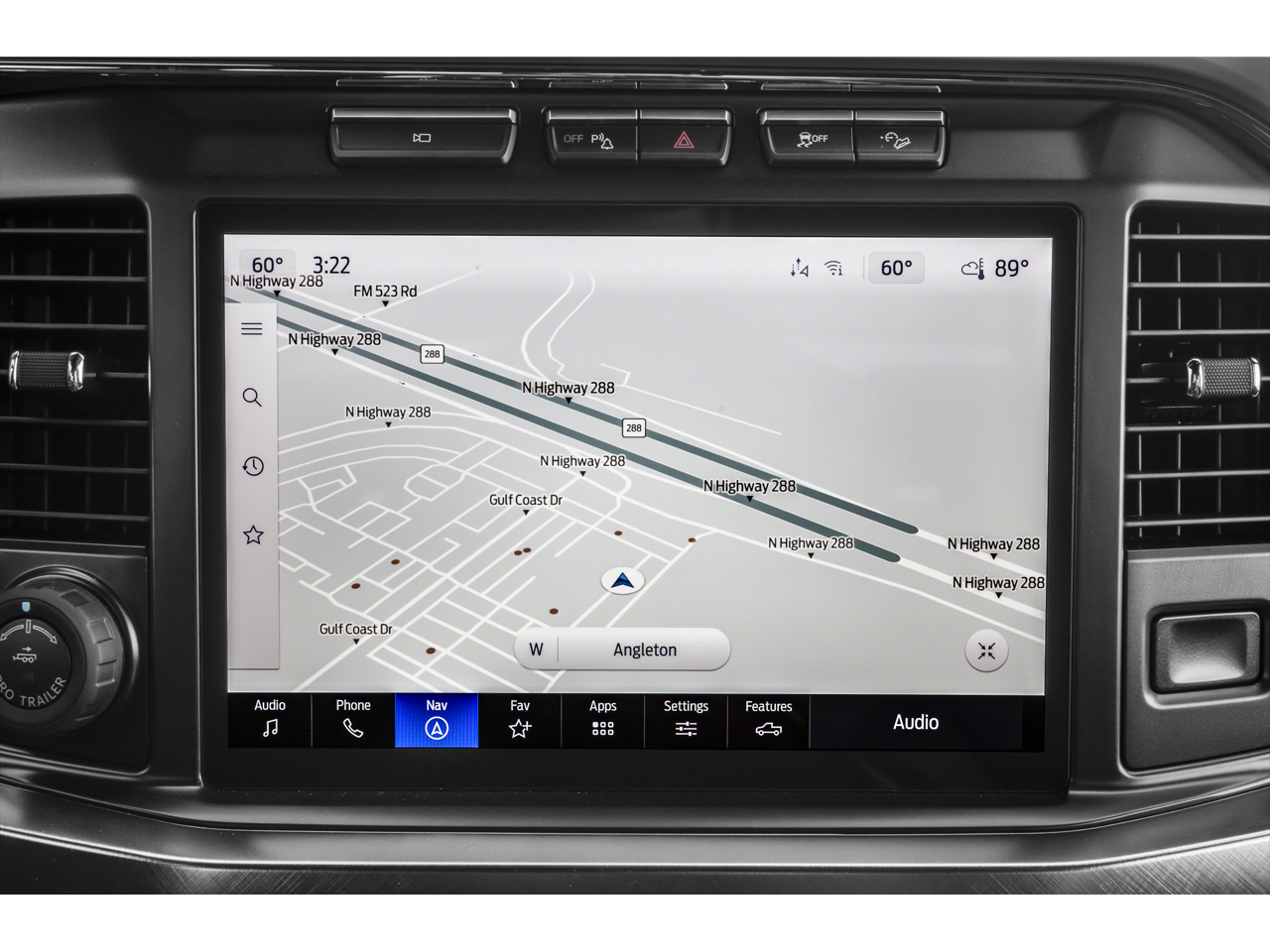

• Sync4 W/8" Screen

• 1Touch Up/Down Dr/Pass Win
• 4.2" Cluster Display
• Air Cond, Manual Front
• Cloth Sun Visors
• Driver Seat-Manual Lumbar
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows

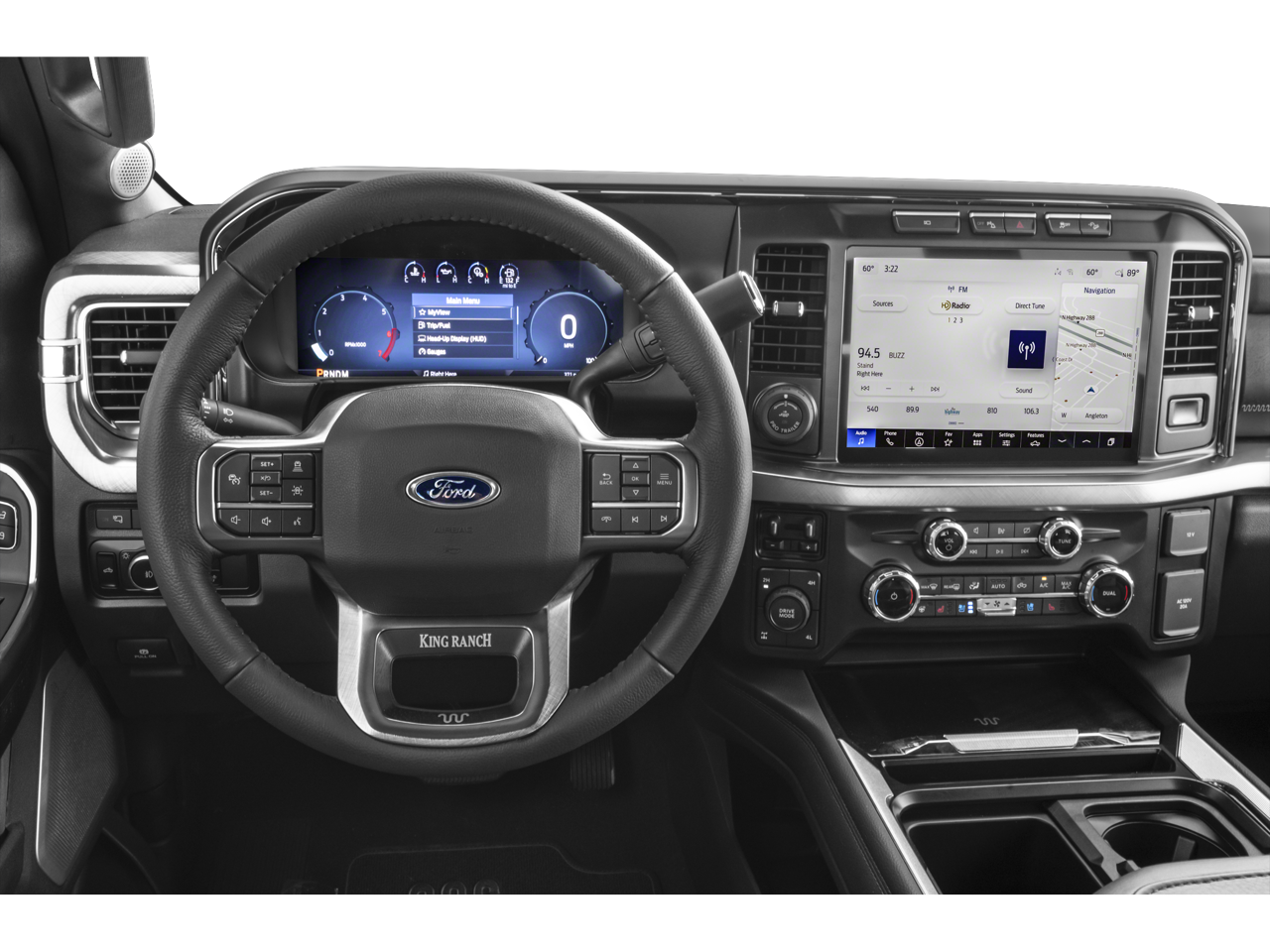

• Steering:Tilt/Telescope, Cruise & Audio Controls

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

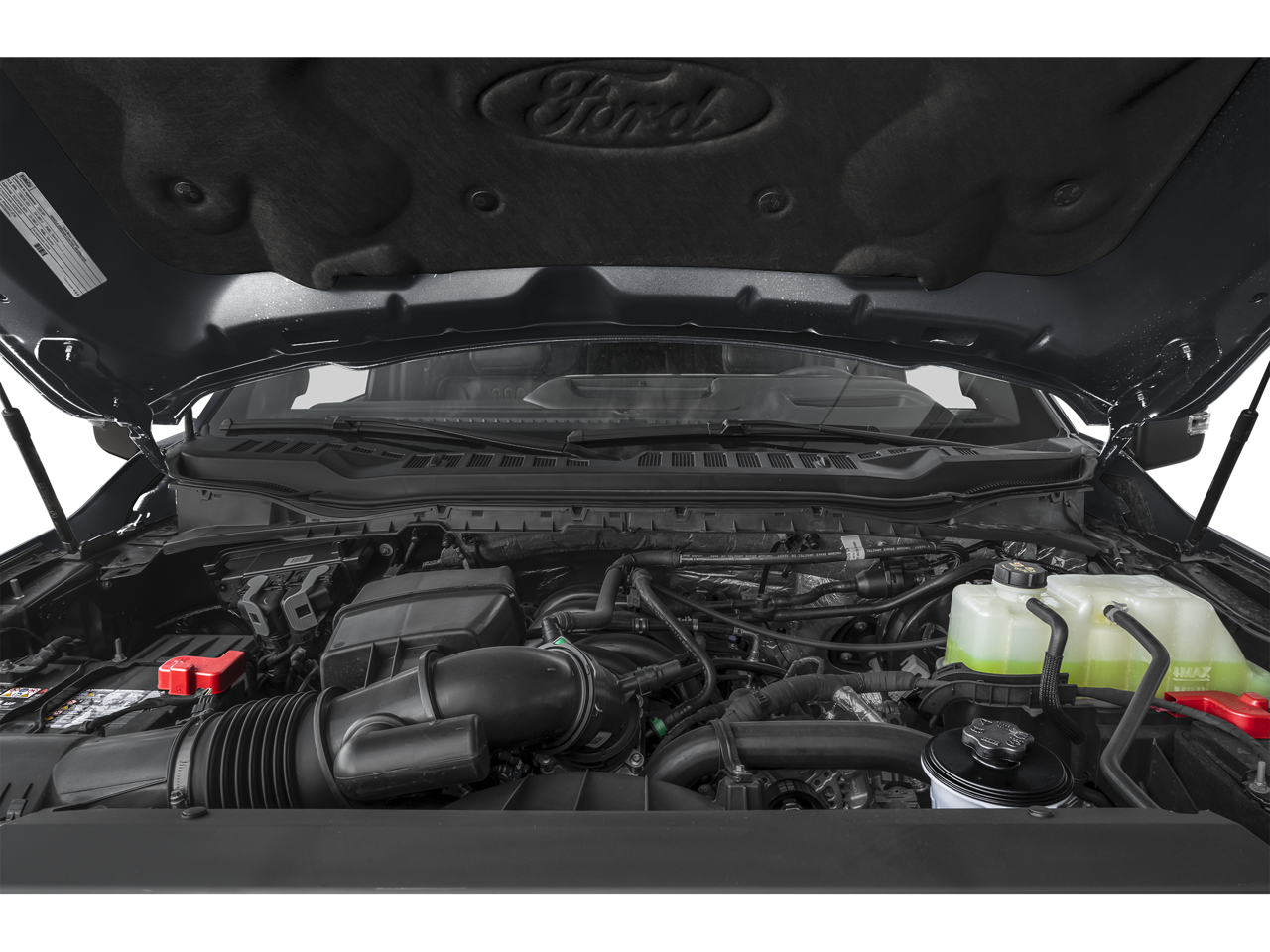

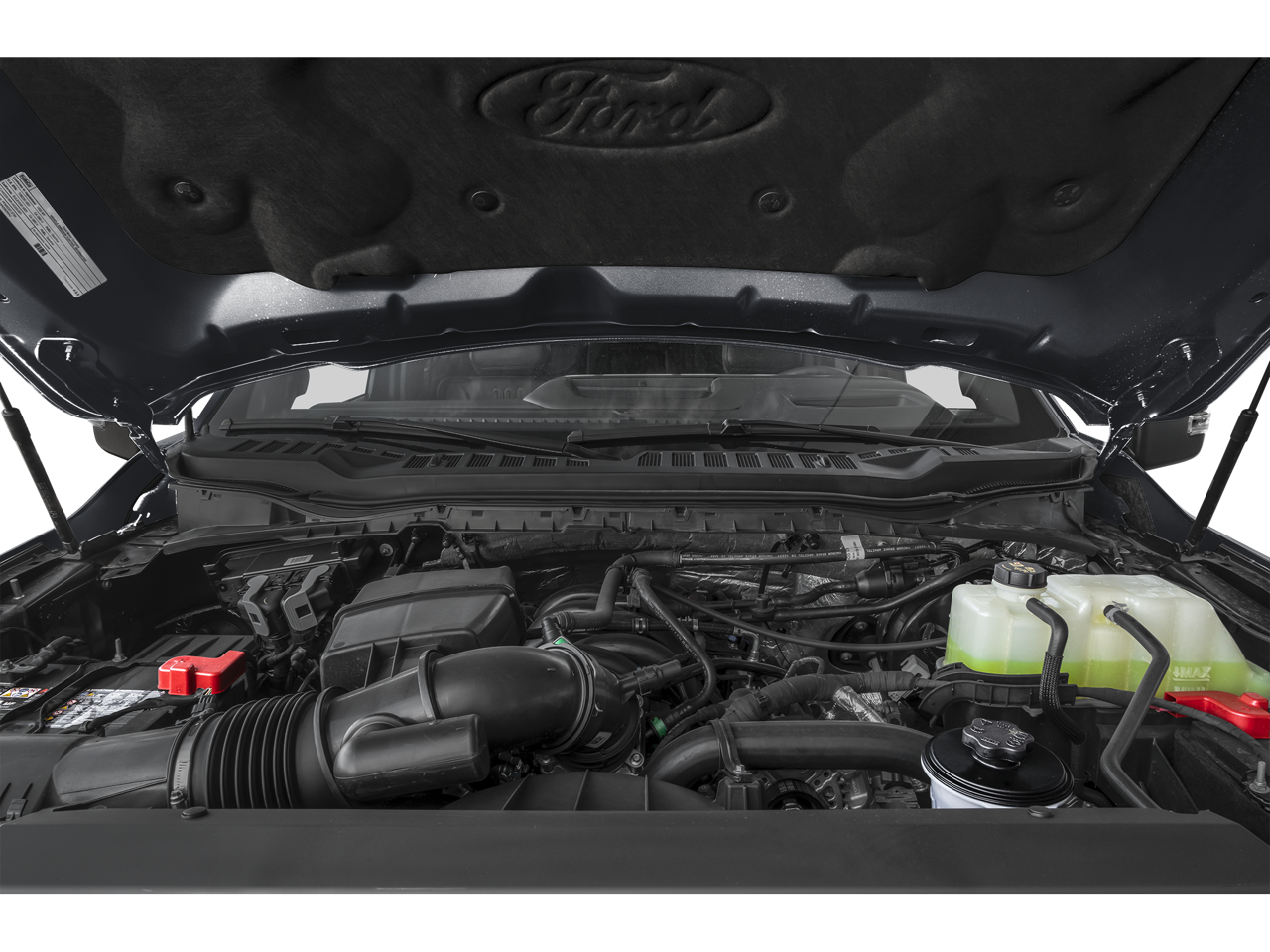

ENGINE: 7.3L 2V DEVCT NA PFI V8 GAS

• CNG/propane gaseous engine prep package which includes hardened engine intake valves and valve seats and bi-fuel manifold
• 410 Amp Dual Alternators
• 250 Amp + 160 Amp (STD)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 250 & 160
• Weight Information
• Base Curb Weight (lbs): 6784
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 7230
• Curb Weight - Front (lbs): 3898
• Curb Weight - Rear (lbs): 2886
• Gross Vehicle Weight Rating Cap (lbs): 11499
• Gross Combined Wt Rating (lbs): 25200
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1790
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4425
• Maximum Trailering Capacity (lbs): 17900
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 7230
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TCW
• Rear Tire Order Code: TCW
• Front Tire Size: LT275/65SR20
• Rear Tire Size: LT275/65SR20
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 7180
• Rear Tire Capacity (lbs): 7180
• Revolutions/Mile @ 45 mph - Front: 612
• Revolutions/Mile @ 45 mph - Rear: 612
• Wheels
• Front Wheel Size (in): 20 X 8
• Rear Wheel Size (in): 20 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 53
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Exterior Dimensions
• Wheelbase (in): 160
• Length, Overall (in): 250
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 81.3
• Overhang, Front (in): 38.2
• Cab to Axle (in): 39.9
• Ground to Top of Load Floor (in): 36.9
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5

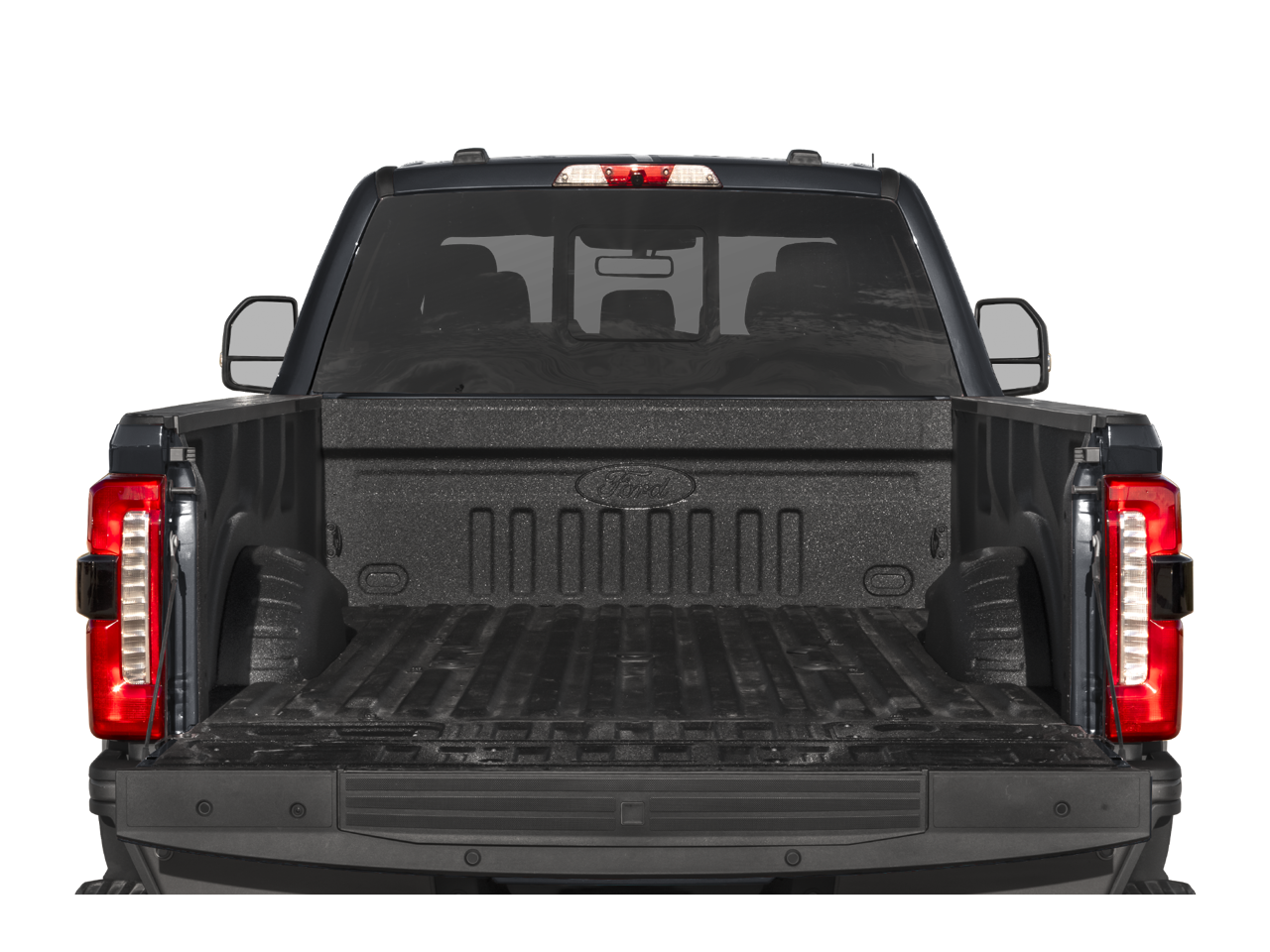

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.9
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 65.4
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

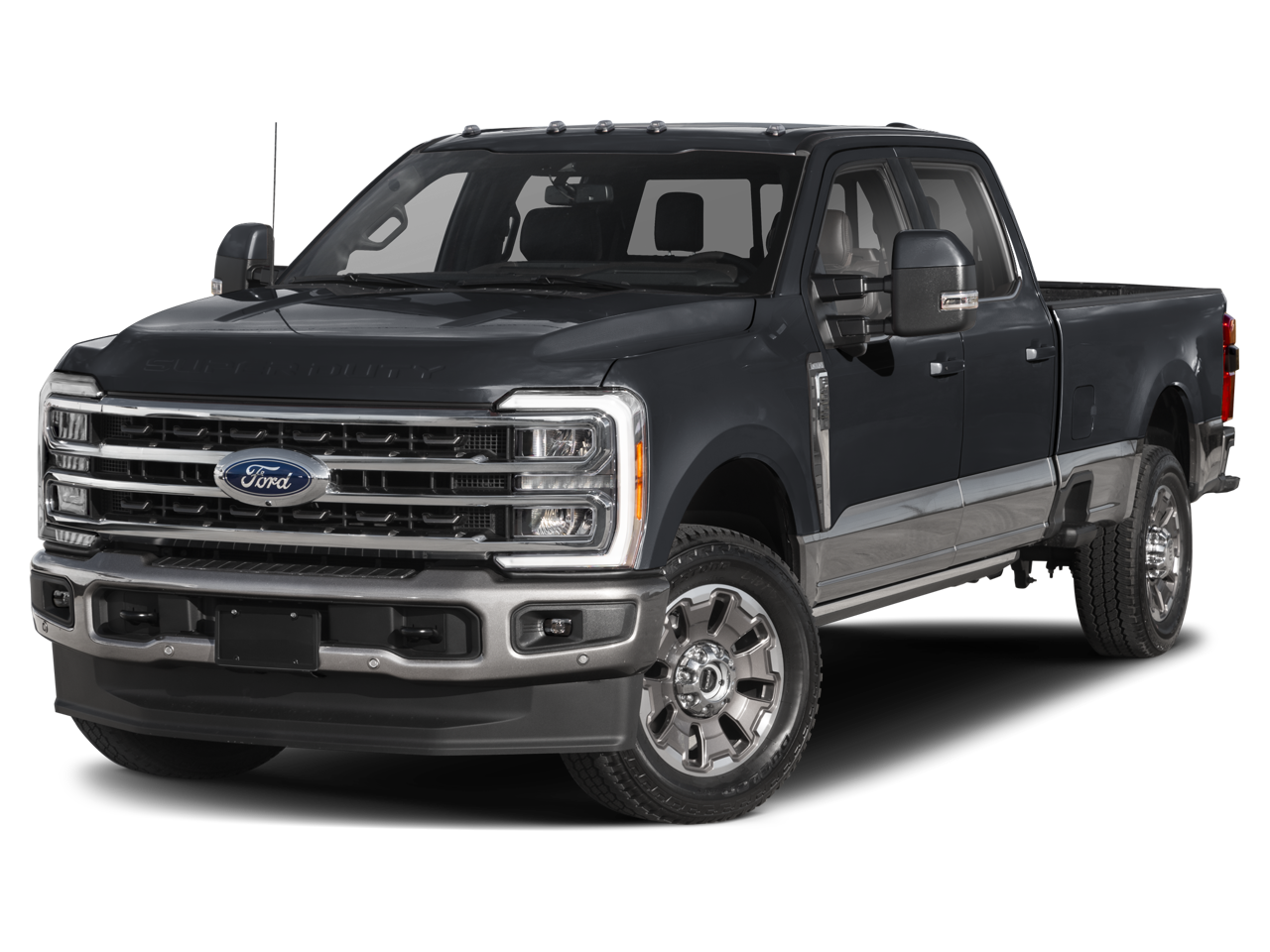

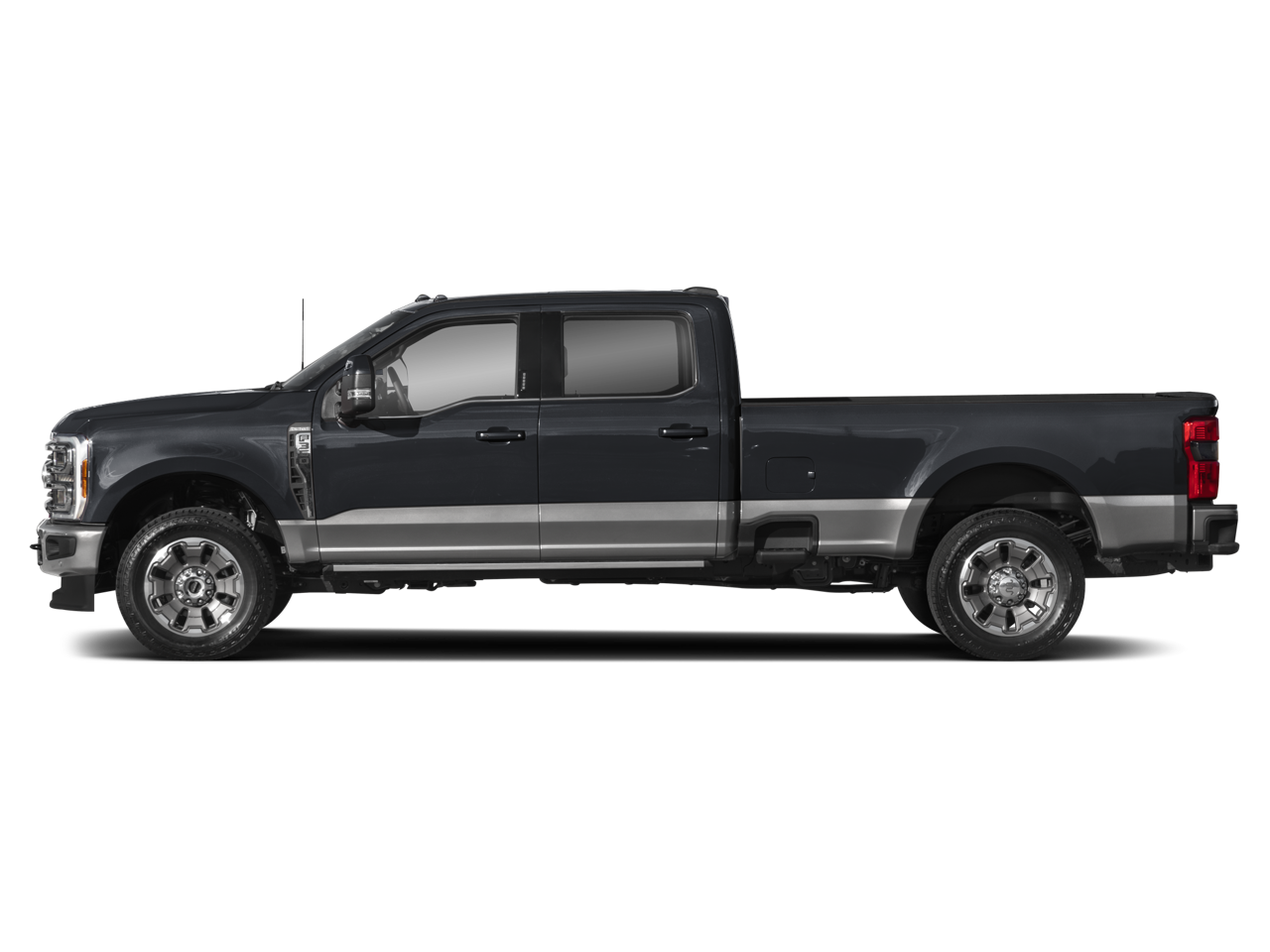

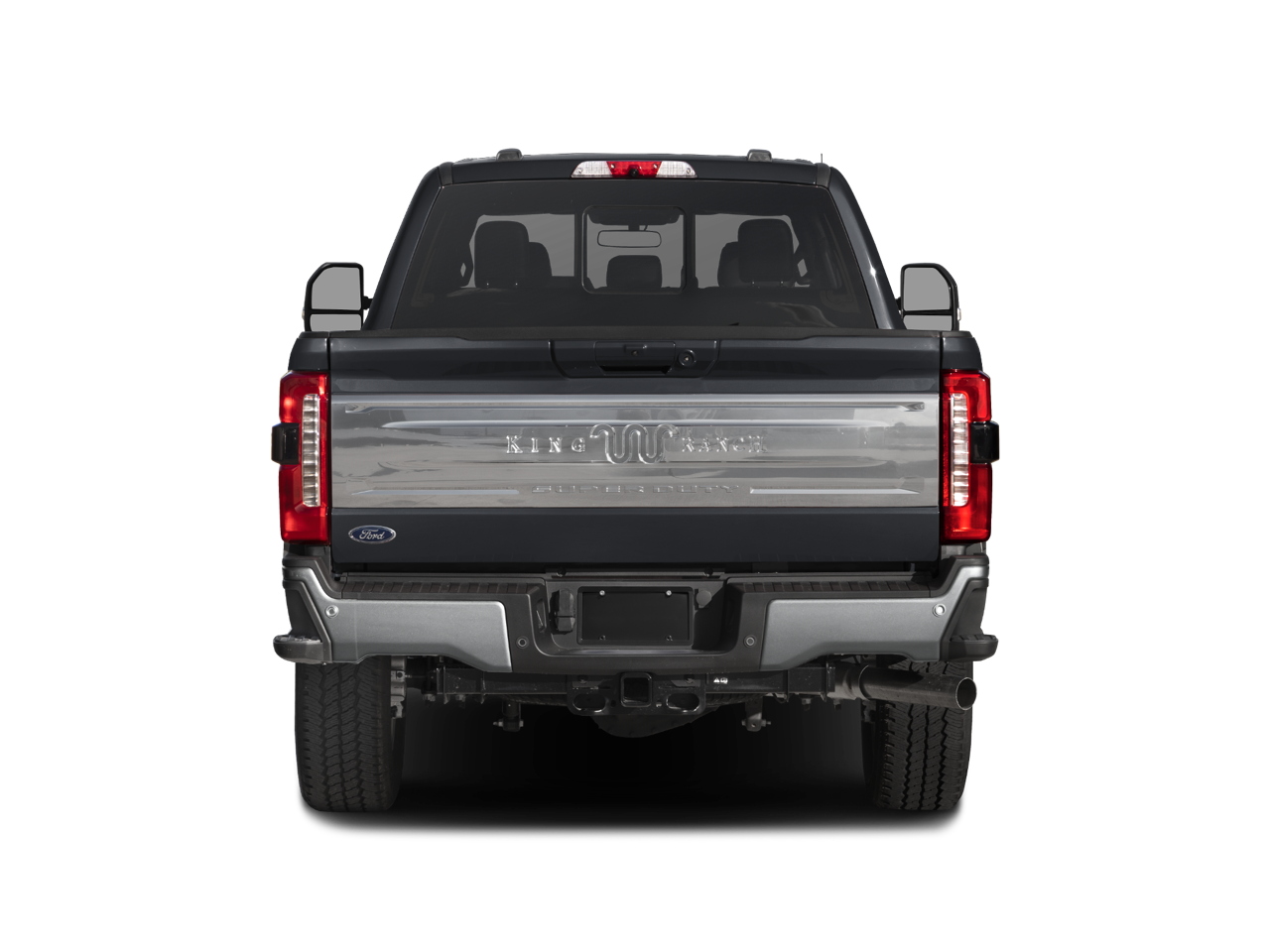

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: SD Crew Cab
• Body Code: T
